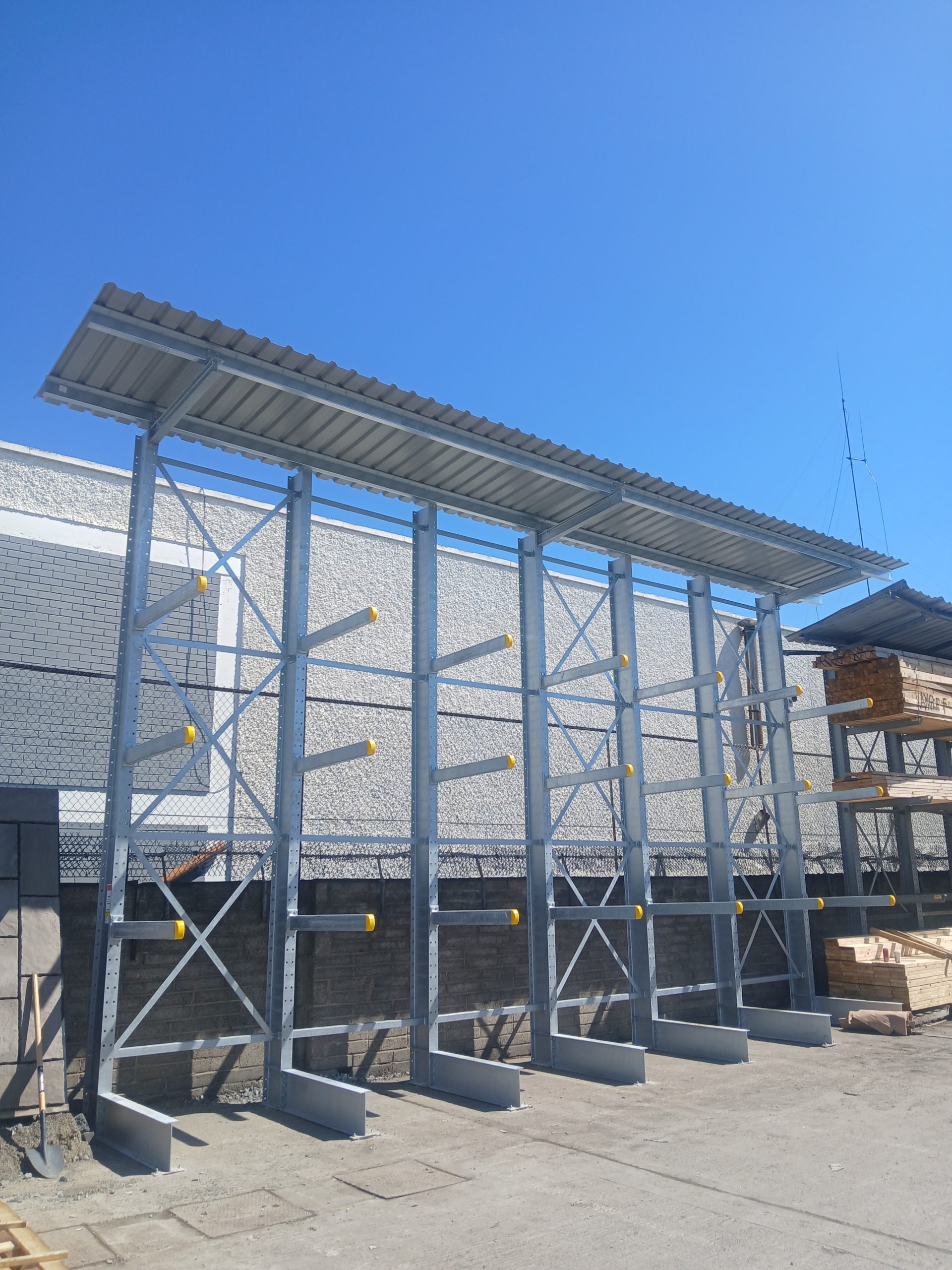

At Rack King we stock heavy duty Cantilever Racking for sale and distribution nationwide.

Our bays that we stock are 3000mm high x 1000mm bays centres with bases up to 1200mm in length. We stock arms in two different lengths of 1000mm and 1200mm both of which have a 250kg load capacity.

Our upright columns are 300mm thick x 80mm wide giving each column a load capability of 1000kg excluding the base.

Cantilever racking is a fantastic way of storing frequently used pipe material and timber lengths and can be easily loaded and unloaded using both manually and by forklift.

What we stock:

  • Columns heights – Up to 3000mm
  • Column load capacity – 1000kg
  • Base depths – Up to 1200mm. Please note 400mm extra depth is required for counter balance so a 1200mm base requires 1600mm in depth from the wall.
  • Arm lengths – 1000mm and 1200mm
  • Arm Load capacity – 250kg
  • Finish – Pre galvanised silver finish except arms which are orange

Contact us today for a cost on our Cantilever racking.
